Scope of Use
● Low Cost: More affordable than glass greenhouses due to cheaper materials.
● Lightweight & Easy to Build: Thin plastic films make structures light, simple to assemble, and portable.
● Good Light Transmittance: Films effectively transmit sunlight, enhancing crop growth.
● Temperature Control: Ventilation and shading systems regulate temperature and humidity for optimal conditions.
● Adaptable: Suitable for various climates and terrains, with customizable sizes and shapes.
● Easy Maintenance: Simple design and materials ensure low upkeep and cleaning efforts.
Specification
| Type | JIAPEI Tunnel Greenhouse |
| Width | 6m, 8m, 9m, 10m, 12m (For single-span greenhouse, the width is better below 12m) |
| Wall Height | 1.8m, 2m, 2.5m, 3m(According to customer's requirements) |
| Top Height | 4.5m-7.5m (This will be designed depend on the span width) |
| Structure Material | Galvanized steel, hot galvanized steel with 120g/m2, hot dip galvanized steel with 275g/㎡ |
| Covering Material | PE film, (There's a lot of thickness to choose from) |
| Cooling system | It consists of cooling fans and cooling pad（Optional） |
| Ventilation system | Side windows and circulation fans（Optional） |
| Film-rolling system | Electrodynamic type,chain type,manual type（Optional） |
| Insect net | High quality polyrthylene as raw material |

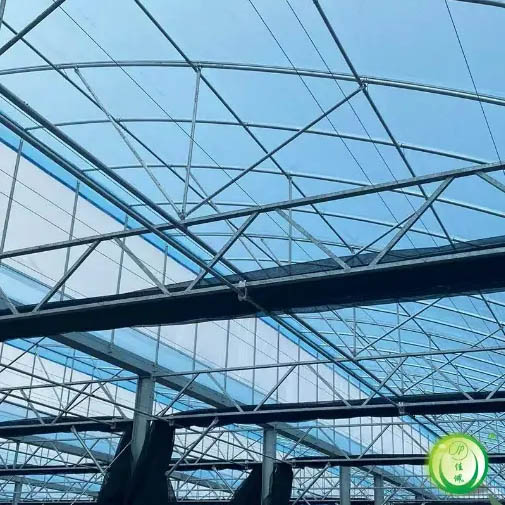

Frame Structure
● High-grade galvanized steel that can withstand wind and snow.
● All steel, purlin, and hardware for body of frame.
● Maximize land use, maximum volume per square mete.r
● Economical (low material use).
● Quick assembly.
Frame Structure
● High-grade galvanized steel that can withstand wind and snow.
● All steel, purlin, and hardware for body of frame.
● Maximize land use, maximum volume per square mete.r
● Economical (low material use).
● Quick assembly.
Increase photosynthesis. When the sunlight is not enough, using plant fill light can increase photosynthesis of plants.
When the temperature is too low in winter, the use of LED growing lamp has the effect of warming up and keeping warm.
A light deprivation/blackout system for greenhouses offers affordable growing solutions for various crops and is an essential way to maximize annual yields, particularly when the market demand is high for your specific product.
Generally installed on the back of the circulation fan, used to completely block sunlight into the greenhouse.
Realized by the principle of water evaporation and cooling. When the air penetrates the water curtain, it exchanges heat with the water vapor on the surface to realize the humidification and cooling of the air.
Realized by the principle of water evaporation and cooling. When the air penetrates the water curtain, it exchanges heat with the water vapor on the surface to realize the humidification and cooling of the air.
Using the temperature difference or wind pressure inside and outside the greenhouse to realize air convection inside and outside the greenhouse, reducing the indoor temperature and humidity.
Side opening window system:Side-opening windows are divided into electric roll-up system and manual roll-up system.
Top/roof windows system:A geared motor, a gear, a rack, a bearing housing, and a transmission mechanism connected with a transmission shaft tube.
The top and side windows are assembled with special aluminum alloy profiles and sealed with rubber strips.
Using the temperature difference or wind pressure inside and outside the greenhouse to realize air convection inside and outside the greenhouse, reducing the indoor temperature and humidity.
Side opening window system:Side-opening windows are divided into electric roll-up system and manual roll-up system.
Top/roof windows system:A geared motor, a gear, a rack, a bearing housing, and a transmission mechanism connected with a transmission shaft tube.
The top and side windows are assembled with special aluminum alloy profiles and sealed with rubber strips.
Inside Shading &Insulation System/Outside Shading System:
The main function of this system is to cool and shade in the summer, so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun.
Anti-UV, anti-hail, reducing damage to the top of the greenhouse.
Inside Shading &Insulation System/Outside Shading System:
The main function of this system is to cool and shade in the summer, so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun.
Anti-UV, anti-hail, reducing damage to the top of the greenhouse.
Supply the suitable environment for hemp growing by controlling cooling system, blackout system top and side ventilation, dehumidifier, lighting system heater and so on.
The main function of Circulation fan is to increase the mobility of the air in the greenhouse, so that the air can be circulated and the indoor air environment can be improved.Solve the problems of high temperature, peculiar smell and poor ventilation.
